Description

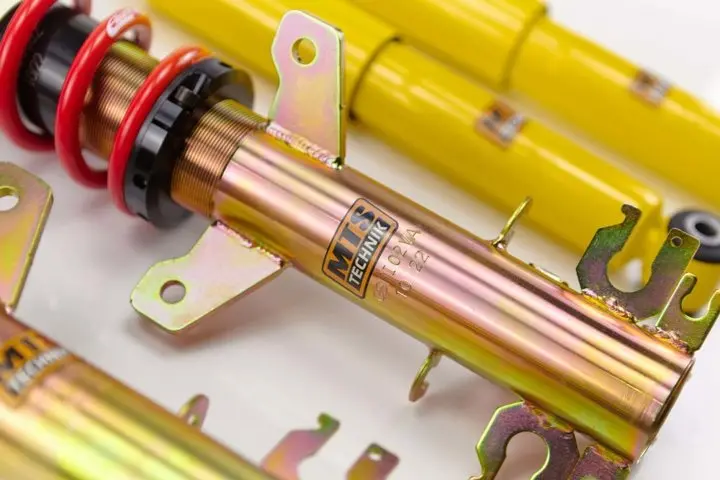

Coilover Kit Street Abarth 500 / 595 / 695

Coilover Kit MTS Technik for Abarth 500 / 595 / 695, lowering the front axle between 10 – 50 mm, and rear between 30 – 65 mm. Dedicated for the years of: 01/08 -, for the engine version: 1.4 (312.AXD1A) / 1.4 (312.AXF11, 312.AXF1A) / 1.4 (312.AXF11, 312.AXF1A, 312.AXD1A) / 1.4 (312.AXF1A, 312.AXD1A) / 1.4 (312.AXT1A) / 1.4 (312.AXY11, 312.AXY1A) / 1.4 (312.AXZ11) / 1.4 (312.AYB11, 312.AYB1A).

Series:	Street
Housing:	gold
Max. Axle Load FA:	-830 kg
Max. Axle Load RA:	-735 kg
Lowering FA:	10 – 50 mm
Lowering RA:	30 – 65 mm
Camber / top mount FA:	no
Camber / top mount RA:	no
Coilover Main Spring (Front):	Spring rate (50 N/mm)
Coilover Helper Spring (Front):	Spring rate (20 N/mm)
Coilover Main Spring (Rear):	Spring rate (23,5 – 34 – 85 N/mm)
TUV Certificate:	yes

3 – Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.73 – For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
