Description

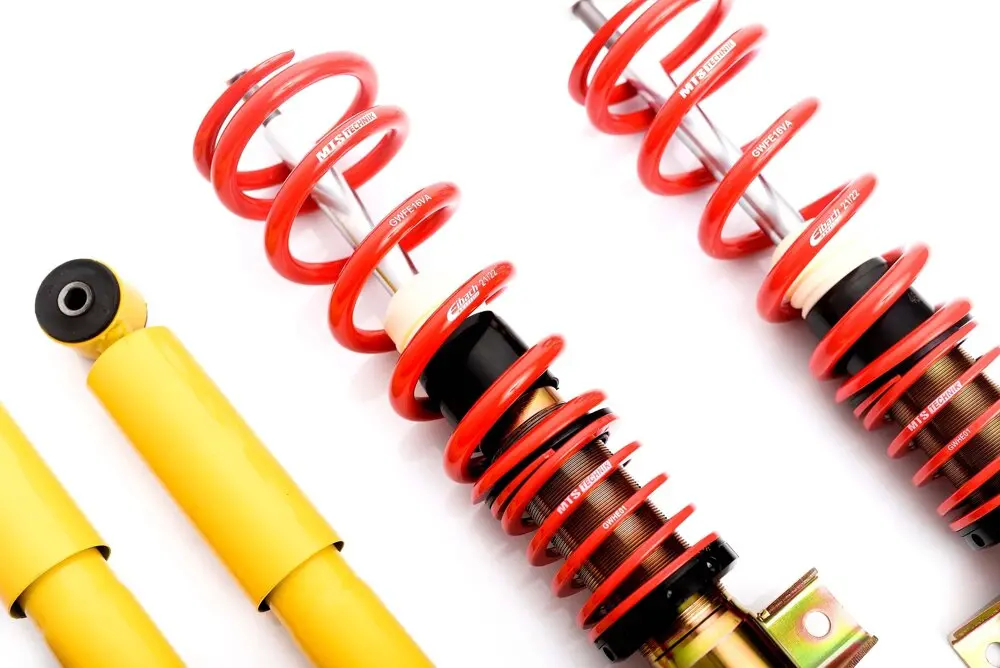

Coilover Kit Street Volkswagen TRANSPORTER T5/T6

Coilover Kit MTS Technik for Volkswagen TRANSPORTER T5/T6, lowering the front axle between 30 – 70 mm, and rear between 30 – 60 mm. Dedicated for the years of: 04/03 – 08/15, for the engine version: 2.0 BiTDI 4motion / 2.0 TDI 4motion / 2.0 TSI 4motion / 2.5 TDI 4motion / VR6 3.2 4motion.

Series:	Street
Housing:	gold
Max. Axle Load FA:	-1710 kg
Max. Axle Load RA:	-1720 kg
Lowering FA:	30 – 70 mm
Lowering RA:	30 – 60 mm
Camber / top mount FA:	no
Camber / top mount RA:	no
Coilover Main Spring (Front):	Spring rate (86 – 105 N/mm)
Coilover Helper Spring (Front):	Spring rate (20 N/mm)
Coilover Main Spring (Rear):	Spring rate (163 N/mm)
TUV Certificate:	yes

Product Notes3 – Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.35 – Rear thread adjustment block is mounted on the top.46 – Models with circular steering knuckle mounting.73 – For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
