Description

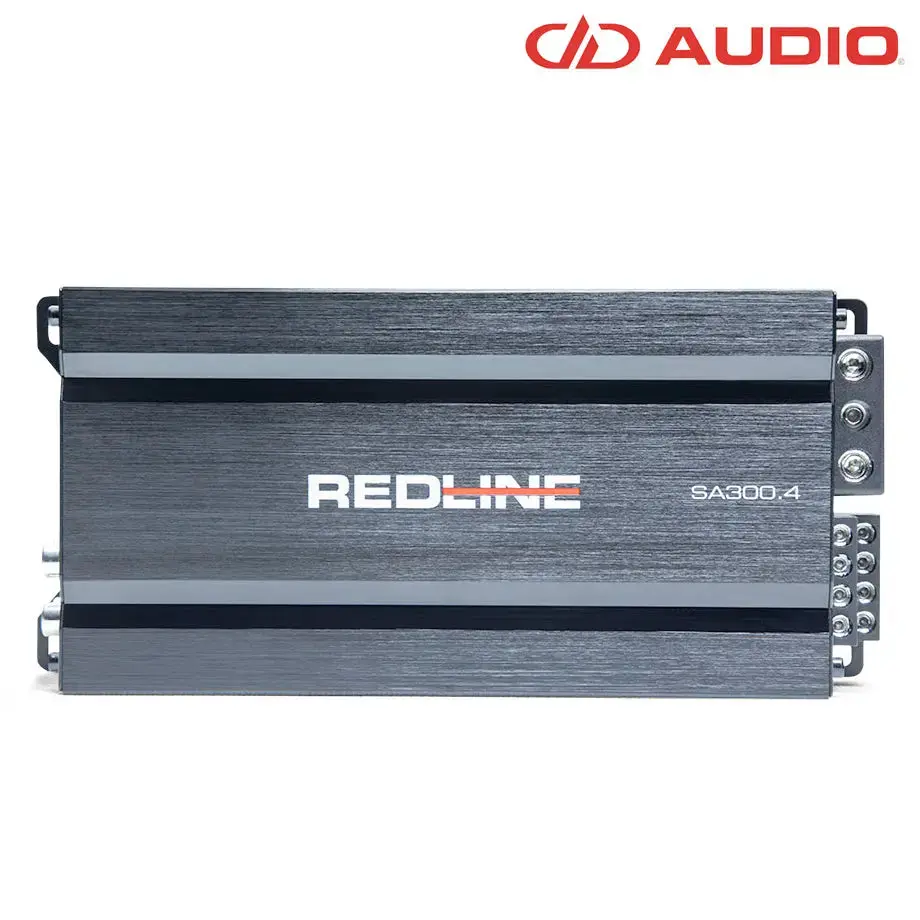

Digital Design DD-RL-SA300.4 RedLine 4-Channel Compact Amplifier 300W
The REDLINE SA Series amplifiers utilize the latest Class D topology to offer powerful output from an ultra compact chassis. Small space, big power, sizable savings.
The RL-SA300.4 is designed to be a go-to aftermarket upgrade amplifier for driving DD REDLINE Series coaxials and components. For added versatility, the rear channels can be bridged to drive a subwoofer providing a complete audio upgrade from a single amplifier!
With the ability to utilize either RCA Line Level or High Level inputs, the REDLINE SA Series amplifiers provide easy factory integration without the need for a line output converter or aftermarket head unit.
- Continuous Wattage @4ohm: 4 x 65W RMS / 2 x 120W RMS
- Continuous Wattage @2ohm: 4 x 75W RMS
- Max Current: 300W
- Operating Voltage: 10 – 16
- Test Voltage: 14.4
- Output Channel(s): 4
- RCA Input Voltage Sensitivity: 6 – 2.5
- High-Level Input Voltage Sensitivity: 20 – 1.1
- RCA Input S/N: > 85
- Damping Factor: > 70
- THD: < 0.1%
- Frequency Response (Hz): 10 – 30k
- Sub-Sonic Filter: 35 – 250
- Low-Pass Filter: 35 – 250
- Dimensions (mm): 180 x 96 x 43
Wiring Cable Recommendations:
- Power Wire Gauge: 4
- Speaker Wire Gauge: 12
