Description

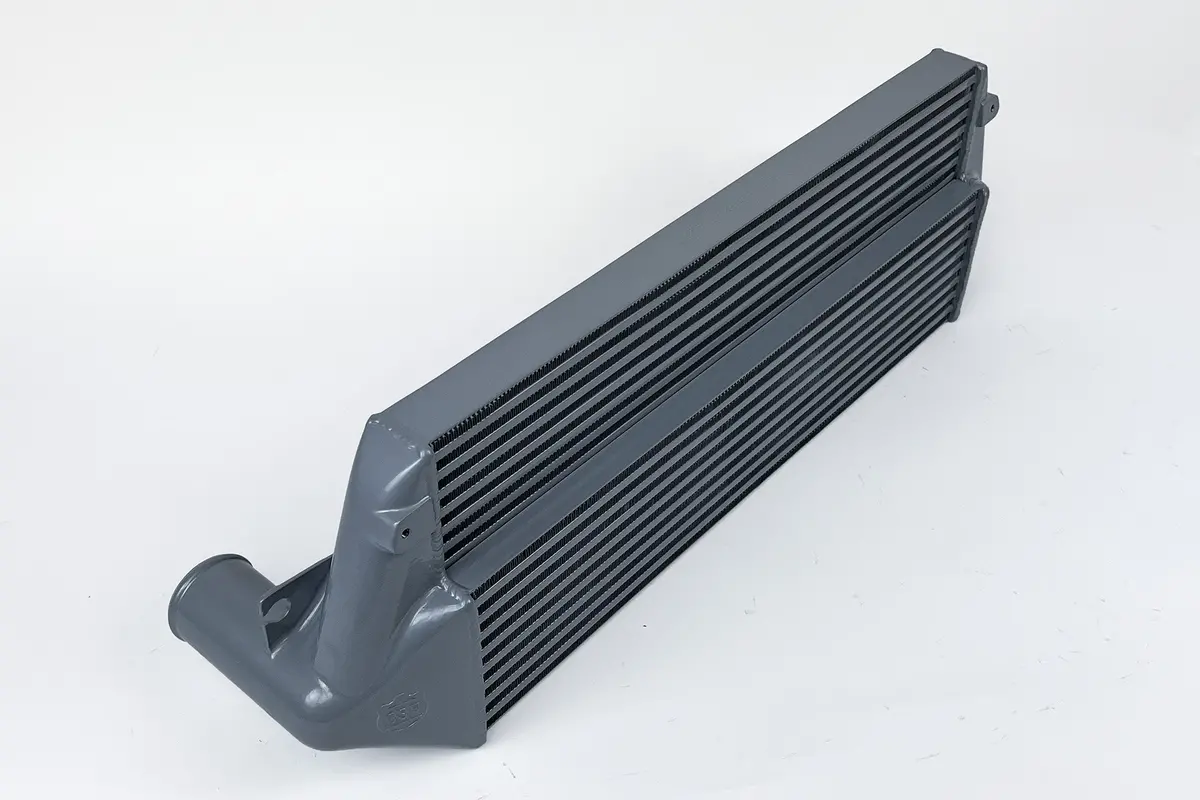

CSF and Jackson Racing have engineered the most advanced intercooler available for the 2023+ GR Corolla. Using 3D scanning and advanced CFD software, the stepped-core design maximizes cooling efficiency while maintaining optimal airflow and fitment. Moto IQ’s independent testing called it “The Best Intercooler We’ve Ever Tested.”
Key Features:
- Stepped-core tube and fin design increases core volume by 45% and surface area by 73%
- Charge air temperature reduction of 240°F with minimal heat soak compared to OEM
- 100% TIG-welded cast aluminum end tanks for superior strength versus crimped plastic
- Motorsport-grade 5-ply silicone hoses with bead lock clamps rated for high boost
- Larger 2.5in (63.5mm) inlet/outlet connections step up from factory 1.85in diameter
- Drop-in fit installation requires no bumper or support modifications
- Available in Silver (#8285) and Black (#8285B) finishes
Performance Notes:
- Reduces charge air temps by more than 240°F versus OEM
- Provides 90°F cooler charge air than factory intercooler
- Heat soak takes twice as long to develop compared to OEM unit
- Maintains 60°F cooler temps even when heat soaked versus factory design
Includes:
- High-performance stepped-core intercooler assembly
- Motorsport-grade silicone hoses and bead lock clamps
- All required installation hardware
- 2-year limited warranty
Maximum cooling. Maximum durability. Maximum performance. Built for the GR Corolla.
