Description

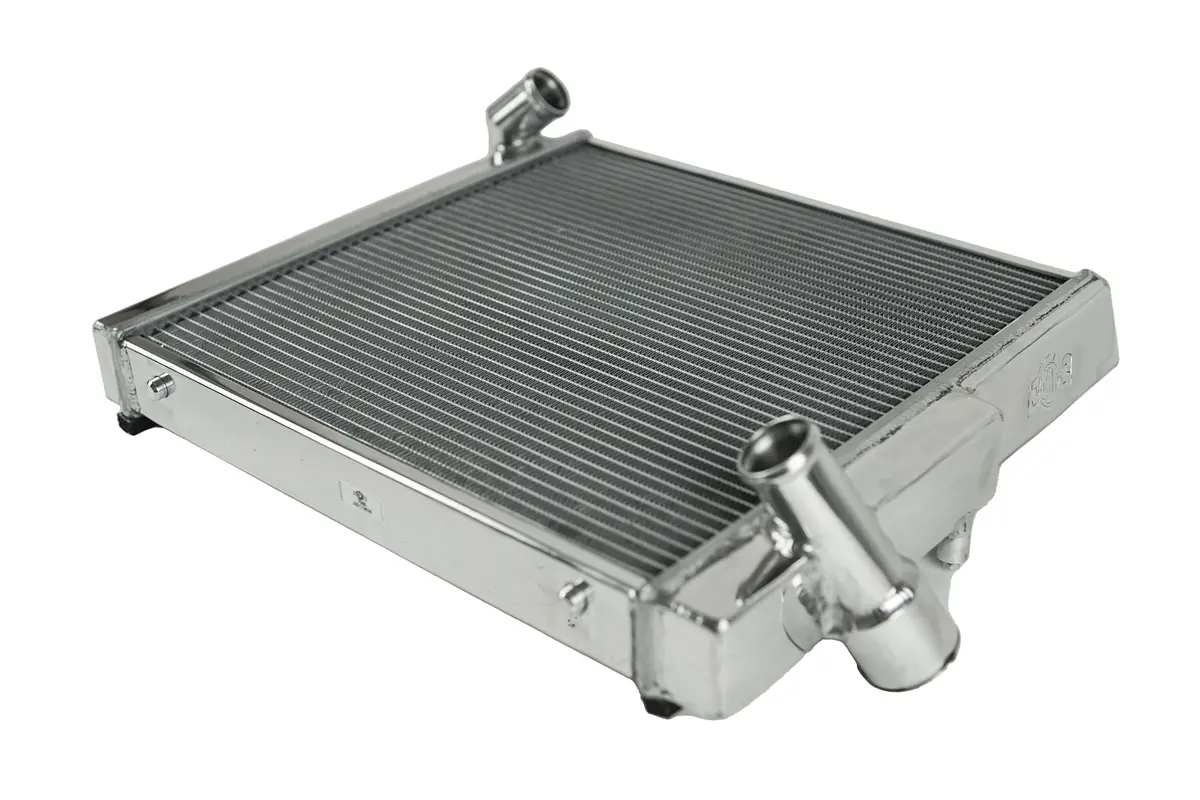

CSF brings over 5 decades of radiator manufacturing expertise to the 991.2 911 and 718 platform. This all-aluminum high-performance radiator is engineered to excel on the street or at the track, delivering superior cooling for both stock and high-horsepower builds.
The radiator features CSF’s proprietary B-Tube Technology, which uses specially engineered tubes brazed along the seam rather than welded. This design is stronger than conventional O-shaped tubes while utilizing thinner aluminum for improved cooling efficiency. The B-tube configuration increases heat transfer surface area by approximately 15% and enables dual liquid laminar flow, delivering the cooling performance of two smaller tubes within the same space.
Multi-louvered fins are precisely aligned and individually tested in CSF’s wind-tunnel lab to maximize airflow and heat rejection efficiency.
Key Features:
- 2-Row 42mm core with CSF exclusive B-Tube Technology (+20% efficiency)
- 6.5mm fin height with multi-louvered design for maximum surface area
- All-aluminum construction with 100% TIG-welded end tanks
- CNC machined brackets and fittings for superior fit and durability
- OEM-style machined inlet/outlet connections compatible with OEM hoses
- Individual leak and pressure testing on all units
- Plug-and-play drop-in fit with no modifications required
- Accepts OEM AC condenser and fan shroud
- Smooth satin finish
Includes:
- CSF all-aluminum radiator assembly
- CNC machined OEM-style brackets
- Pre-installed inlet/outlet connections
Engineered for the 991.2 911, GT2, GT3, 718 Boxster, and 718 Cayman lineup. Professional-grade cooling for any application.
