Af463-03 Turbo Oil Drain Adapter Fitting

Description

Turbo Drain Adapter

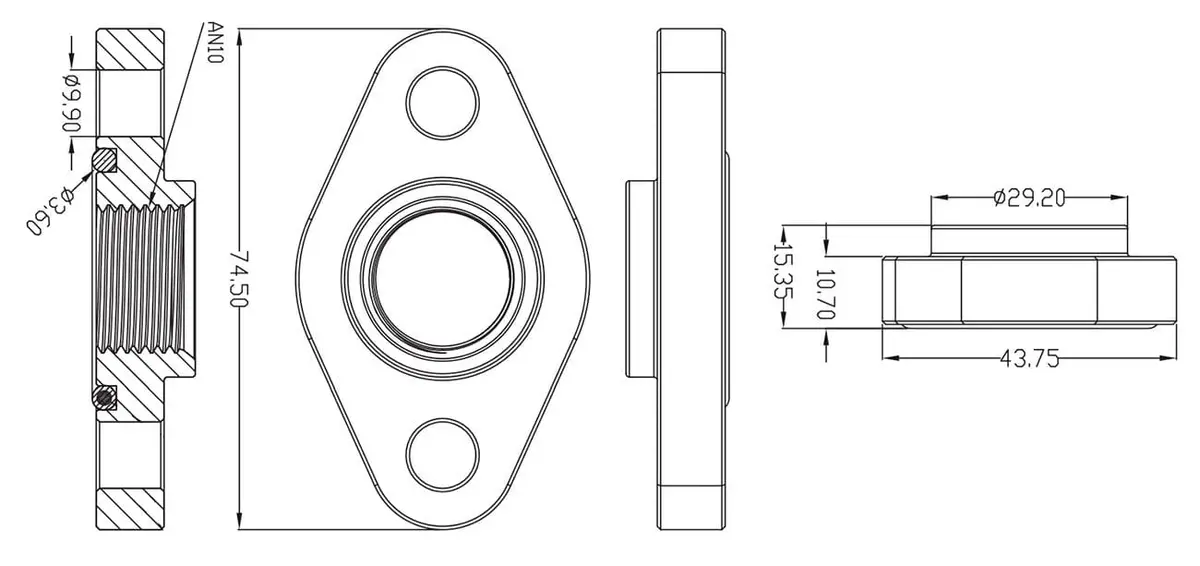

-10AN ORB outlet, 52.4mm bolt centre, Black Finish

AF463-03

463-03

Turbo Oil Drain Adapter With O-Ring Seal.-10 ORB female with 52.4mm hole centres to suit turbos with 52.4mm bolt centres on core.This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose.
